Abstract:
This document explains how to get Crimson 3.1 to talk to using the Cumulocity Connector Platform on Red Lion's DA50A. It assumes a basic knowledge of Crimson and its operation. For more details on the Crimson Cloud Connectors, please consult the Crimson User Manual.
Use Case: Cumulocity Connector
Transferring tag data using Cumulocity IoT Platform.
Optional Crimson Database sample file:
For testing purposes, a sample demo database file is being provided to assist you with configuration of the scenario outlined within this document.
This database may be downloaded via the url/link below:
https://redlioncontrols.zendesk.com/hc/article_attachments/14381261066509
Setting up a device on a Cumulocity account

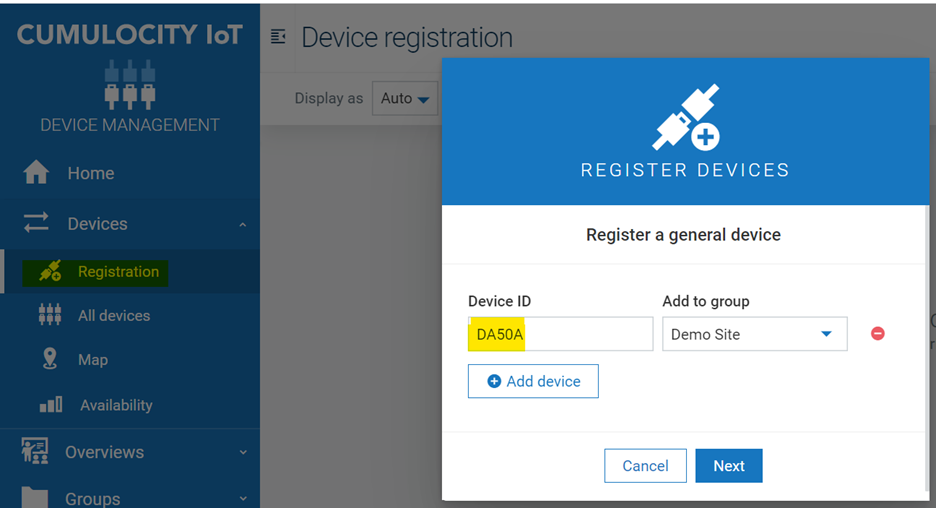

Define Device ID used in automatic mode as shown in the screenshot below:

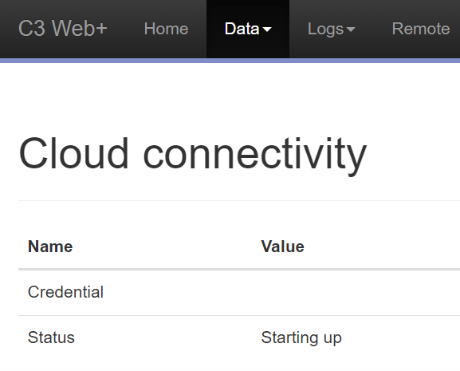

You may be prompted to wait for the Device Authentication request to complete as shown below:
Preparing tags in Crimson software
Credential configuration

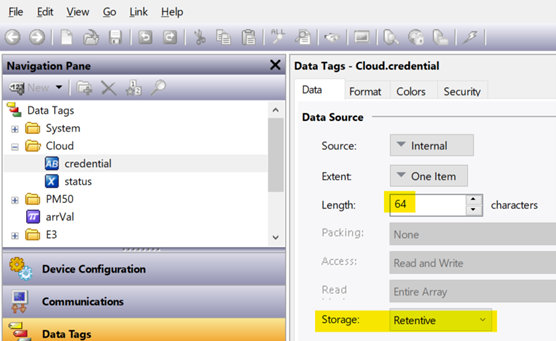

String type, retentive, 64 bytes length
Communication status

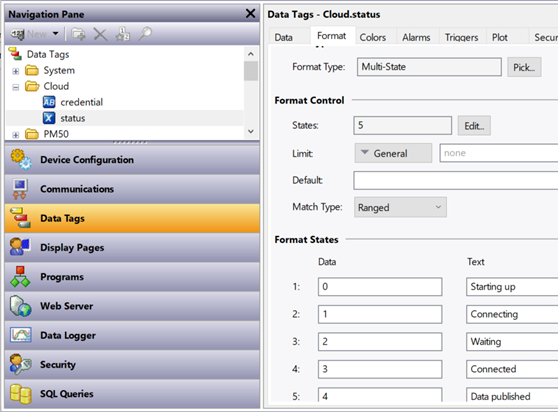

Configure the numeric type as multi-state as shown below:
Communication settings

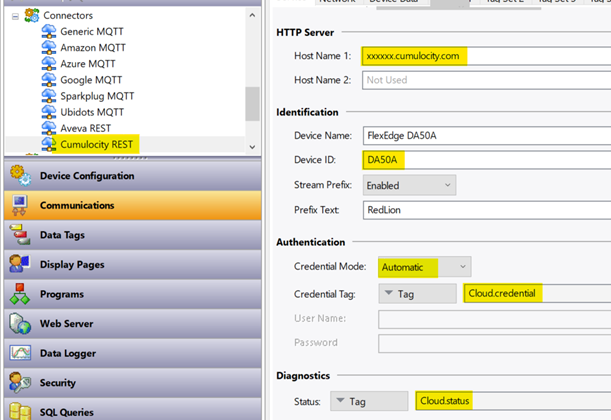

Authentication and status configuration
Configure the credential mode to Automatic -> this is stored in the corresponding tag as soon as authentication is accepted.
Defining the desired data sets

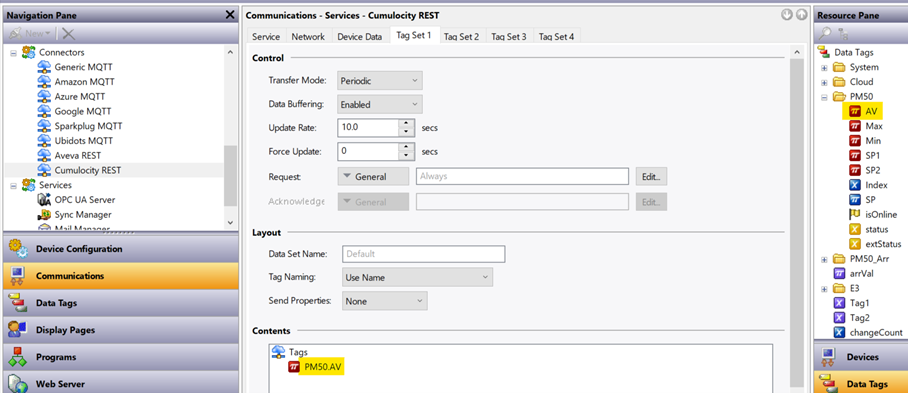

Simply drag and drop the desired tags as shown below:
Note - Up to 30 data sets with different update modes may be defined above.
Cumulocity device acceptance confirmation
Authentication request detected.

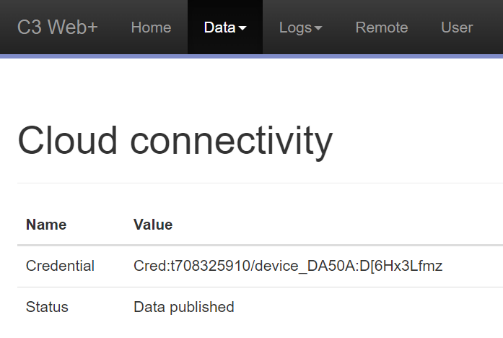

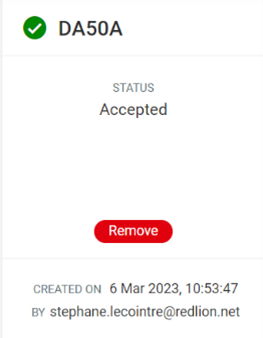

Authentication request accepted
Note, this process may take a few minutes due to the connection attempt cycle.
