PLEASE NOTE:
When converting from a CUB2L000 to CUB4L0000 there will be no L.S. or H.S connection terminal on the CUB4L000. This is because the CUB4L000 uses pull-up or pull-down resistors that are DIP switch settable.
When using part numbers CUB4L020 (Red Backlight) or CUB4L820 (Red Backlight).
A 12 to 24 Vdc power supply must be added to power the backlight. Our MLPS1000 (12 Vdc) and MLPS2000 (24 Vdc) are suggested for use.
APPLICABLE PRODUCTS
CUB2L000, CUB2L800, CUB20000, CUB4L000, CUB4L020, CUB4L820.
PRE-REQUISITES
NONE
IN THIS ARTICLE
- Wiring conversion from legacy CUB2 to CUB4 panel meter.

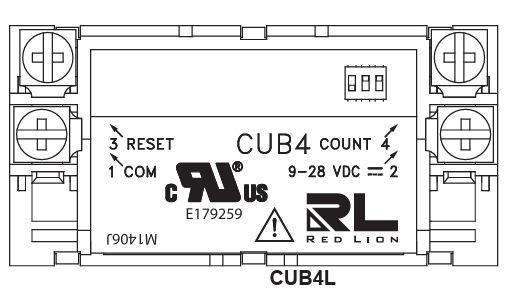

- CUB2L, CUB4Lxxx rear wiring diagram.
- CUB4Lxxx rear DIP switch diagram.
- Optional remote reset wiring.
Converting from the CUB2L to CUB4L panel meter. Proceeded as below.
- Connect the L.S. or H.S connection of the CUB2L to terminal 4 of the CUB4L.
- If using a backlighted model your MLPS or external Vdc power supply will be wired to terminals 1 and 2 of the CUB4L.
- When a L.S. connection was used on the CUB2L000. Set rear DIP switch 2 to the Lo frequency position.
- Set rear DIP switches based on your application input signal type.
CUB2Lxxx
CUB4Lxxx DIP switches
For NPN input signals DIP switch 1 will be in SNK position. Generally, DIP switch 2 will be in the Hi Freq position. If mechanical, dry contacts, are used then DIP switch 2 will be in the LO Freq position.
For PNP input signals DIP switch 1 will be in the SRC position. This is for use with input voltages up to 28 Vdc. If mechanical contacts are used then DIP switch 2 will be in the LO Freq position.
Optional
- To disable the front panel reset button DIP switch 3 down.
- Remote reset push button input.
If a remote reset pushbutton is desired. You have the option of wiring a dry contact N.O. pushbutton to rear terminals 1 and 3 of the CUB4L panel meter.
ADDITIONAL INFO
CUB4L Product Manual
CUB2L Product Manual
CUB2 Product Manual
