PLEASE NOTE:
When converting from the legacy CUB4CL unit to the current CUB5I there is a input signal range jumper under the rear cover that will need to be set for your application mA input level. Display scaling is also done via the front keypad not with scale potentiometers.
This article will discuss the conversion of legacy CUB4CL units to the current CUB5I model.
APPLICABLE PRODUCTS
CUB4CL20, CUB4CL40, CUB5IB00, CUB5IR00
PRE-REQUISITES NONE
IN THIS ARTICLE
- Wiring conversion from Legacy CUB4CL to CUB5I panel meter
- Example input scaling procedure
- Use of style applied input scaling
To complete the conversion of the legacy CUB4CL unit to current CUB5P units proceed as below.
- First if this application was using an input signal greater than 20 mA. Remove the rear cover of the CUB5I unit and set the input range jumper to the 200mA position. See CUB5I product manual document page 3 for details.
- Connect the signal + wire to the input+ terminal of the CUB5I unit.
- Connect the signal – wire to the common terminal of the CUB5I unit.

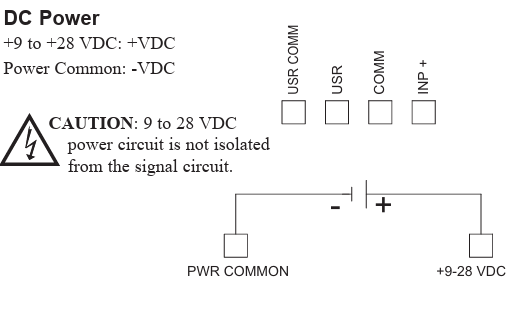

- Connect the V+ wire to the +9-28 Vdc terminal of the CUB5I unit.
- Connect the com wire to the PWR com terminal of the CUB5I unit.
- Please note There is USR COM and USR terminal on the CUB5I unit. Those terminals when jumped together allow for a program lockout feature. When active the unit is in program lock mode. When removed you have normal program access. This mode can be setup by programming. Menu 1-INP, USER IN as a PLOC function. See page 7 of the CUB5I product manual. This is optional if a program disable feature is desired.
CUB4CLxx UNIT
CUB5Ixxx UNIT
Example unit input scaling procedure
End user has a transducer with a 4-20 mA output and wants the display scale to read PSI. Pressure range of the transducer is 0-1000 PSI.
Unlike the legacy CUB4CL unit the CUB5I scales the input via firmware settings. Please see Page 7 of the CUB5I product manual. Menu 1-INP
Given the above example you would program as follows.
- RANGE 0.02A
- DECPT 0
- OFSET 0
- FILTR 1
- BAND 10
- STYLE KEY
- INP1 4.000
- DSP1 0
- INP2 20.000
- DSP2 1000
The above example was scaled using the STYLE KEY method. The end user knows the input signal type as well as the transducer range. If the signal type is known but not the range of the transducer. The CUB5I can be scaled using the active input signal level and then scaled to a known reference value using the STYLE APLY method. Please see page 7 of the CUB5I product manual.
ADDITIONAL INFO
CUB4CL Product Manual Document
CUB4CL Product Manual Document
CUB5I Product Manual Document
