Abstract
Red Lion Workbench has native support for many fieldbus protocols. Only a subset of these drivers are supported in the ST-IPm-8460, VT-mIPm-138-D and VT-mIPm-248-D. This document will be updated to include additional fieldbus protocols as they become available.
Products
ST-IPm-8460
VT-mIPm-138-D
VT-mIPm-248-D
Use Case: Drivers supported in the Red Lion Workbench and ST-IPm-8460
Required Software
Red Lion Workbench 1.0.3 or higher.
ST-IPm-8460 firmware 7.0.101 or higher.
Sixnet I/O Tool Kit 5.0.101 or higher.
Drivers currently supported
- Modbus Master
- Modbus Slave
Selecting the Fieldbus Protocol in Red Lion Workbench
-

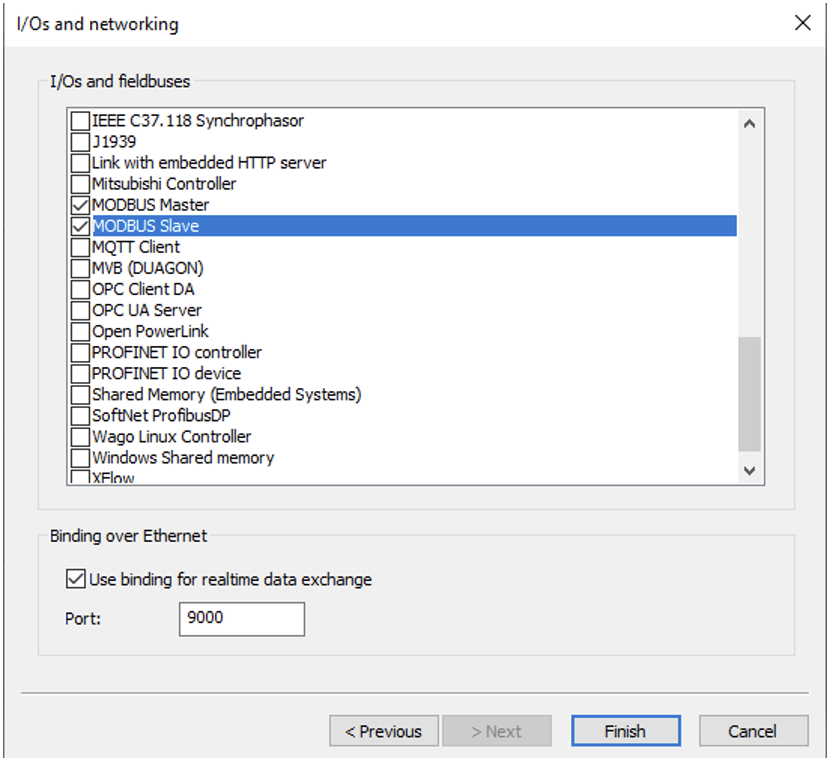

When the project is first created. After creating a new project the option to select a Fieldbus driver will come up. Select the driver you would like to use in the project. Go to the Fieldbus configuration to configure the protocol.
-

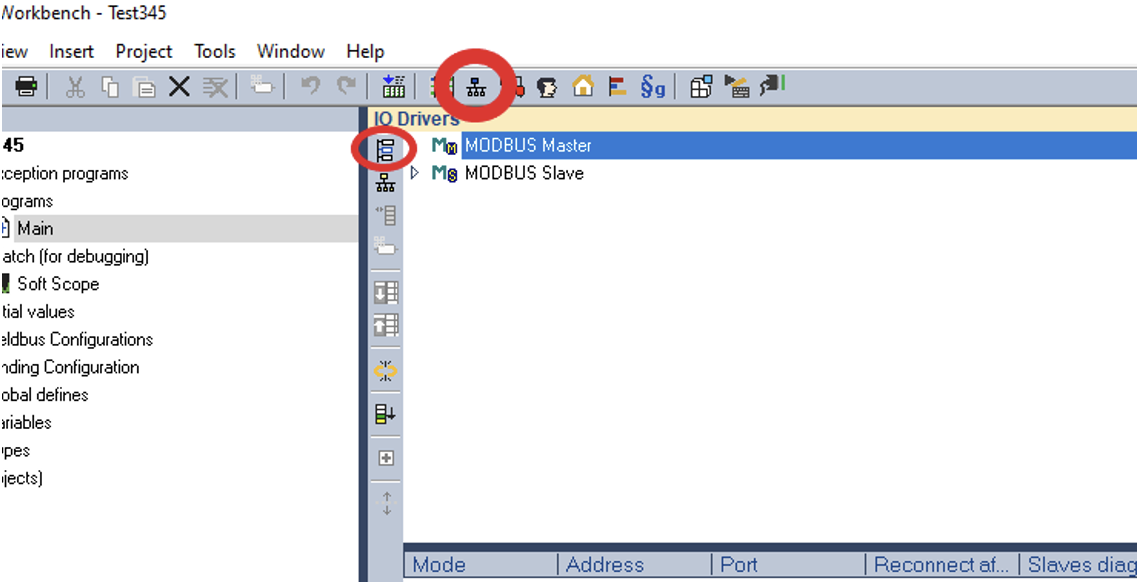

Adding a Fieldbus protocol in an existing project. Protocols may be added after a project is created. In the main project window click on the Fieldbus icon on the toolbar. Add a Fieldbus configuration by clicking on the ‘Insert Configuration’ icon in the I/O Drivers window. Delete a Fieldbus configuration by right-clicking on the configuration and selecting clear.
