Abstract
This document describes using the Omron FINS Master driver to communicate with a Omron NJ/NX PLC
Products
Red Lion Controls CR1000 Human Machine Interface (HMI), CR3000 HMI, Data Acquisition (DA10, DA30), Data Station Plus, FlexEdge™ (DA50A, DA70A), G3 HMI, G3 Kadet HMI, Graphite® Controller, Graphite HMI, Modular Controller, and Productivity Station™
Use Case
Communicating with a Omron NJ/NX PLC
Introduction
Red Lion has had the chance to verify this set up communicating from a Omron NX102-1220 version 1.30 to a Redlion HMI.
Crimson Communication Configuration
1. Navigate to the Communications section.
2. Click on Network (Crimson 3.x) or Ethernet (Crimson 2.0).
3. Configure the Ethernet port as required for the application.
4. Click on the first available Protocol under Network (or Ethernet).
5. Click the Pick button in the Driver Selection section.
6. Under Manufacturer, choose Omron.

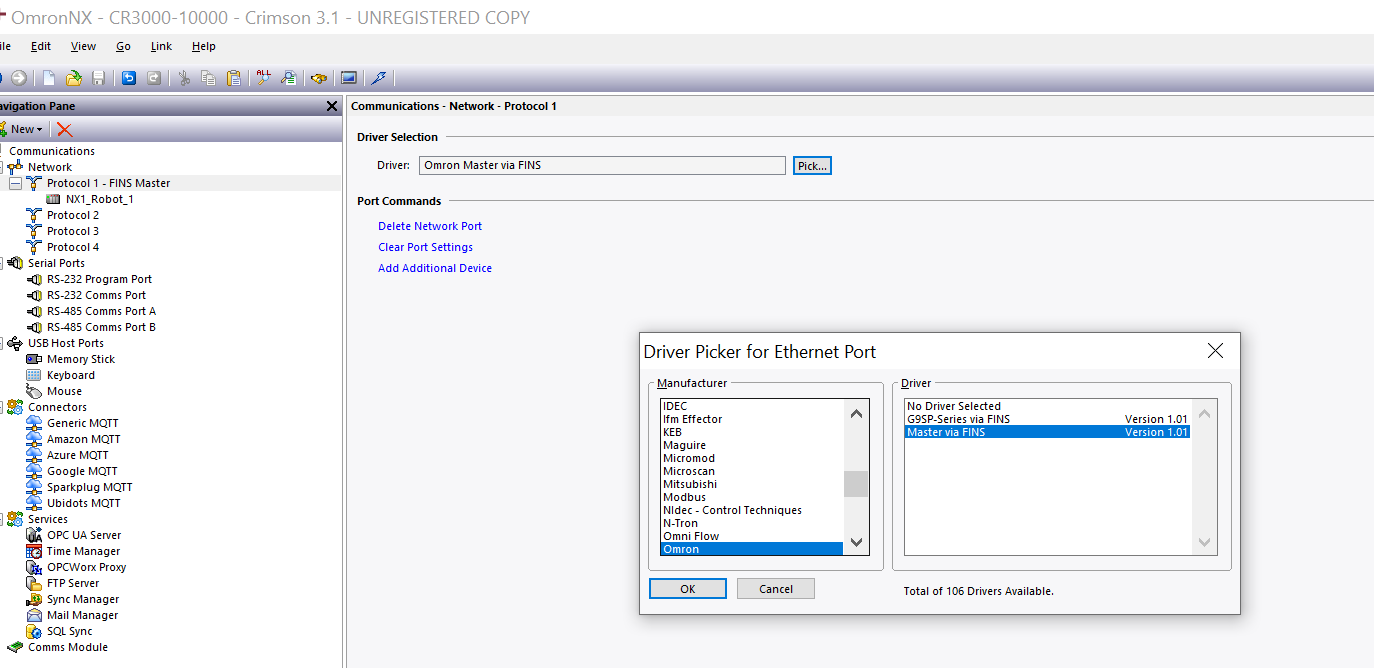

7. Under Driver, select Master via FINS, as shown in Figure 1.
Figure1.
8. Click OK.
9. Click on the device below the protocol, PLC1 as shown in Figure 2.
Figure 2.

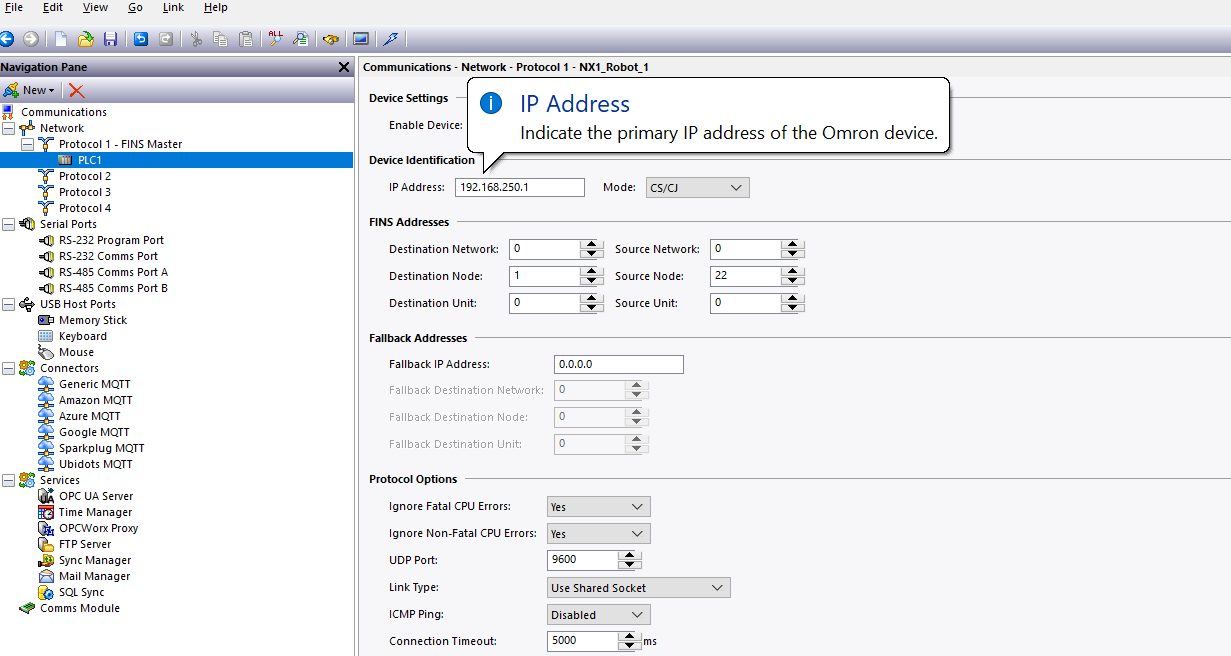

10. Set the IP Address of Omron NJ/NX PLC. Destination node will be the last Octet of Omron PLC's IP Address. It is 1 in this case - 192.168.250.1

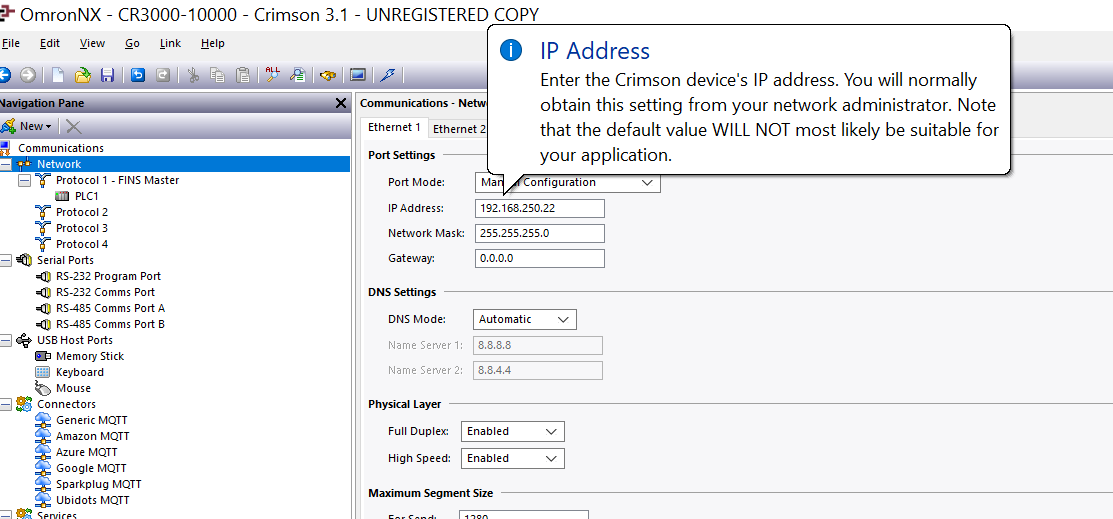

11. Source node will the last Octet of Redlion device's IP Address which is 22 in this case - 192.168.250.22 as shown in Figure 3.
Figure 3.
Crimson Tag Mapping
The following sections show how the addresses in the Omron NJ/NX PLC correspond to the addresses available in Crimson. Figure 4. shows all the available address type
Figure 4.
Attached is the Sysmax Studio program for the Omron NX PLC and also the Crimson 3.1 database used in testing.
Disclaimer
It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
