Abstract:

This document explains how to get Crimson® 3.1 devices to talk to Amazon Web Services (AWS) using the MQTT Connector. It assumes a basic knowledge of Crimson and its operation, and the ability to read and manipulate JSON. For more details on the Crimson Cloud Connectors, please consult the Crimson User Manual.

Products:

CR3000 HMIs / Data Acquisition (DA10 & DA30) / Graphite® HMI / Graphite Controllers/FlexEdge

Use Case: AWS Connector

Transferring tag data from Redlion device to Amazon Web Services and write tag data from Amazon Web services to Redlion device using specified topics

Required Software:

Crimson 3.1 or Crimson 3.2

Optional:

For testing purposes, an outline database can be created as described in the Crimson Cloud Connectors: Creating an Outline Database Tech Note. The outline database will be referenced when configuring the connector.

Steps:

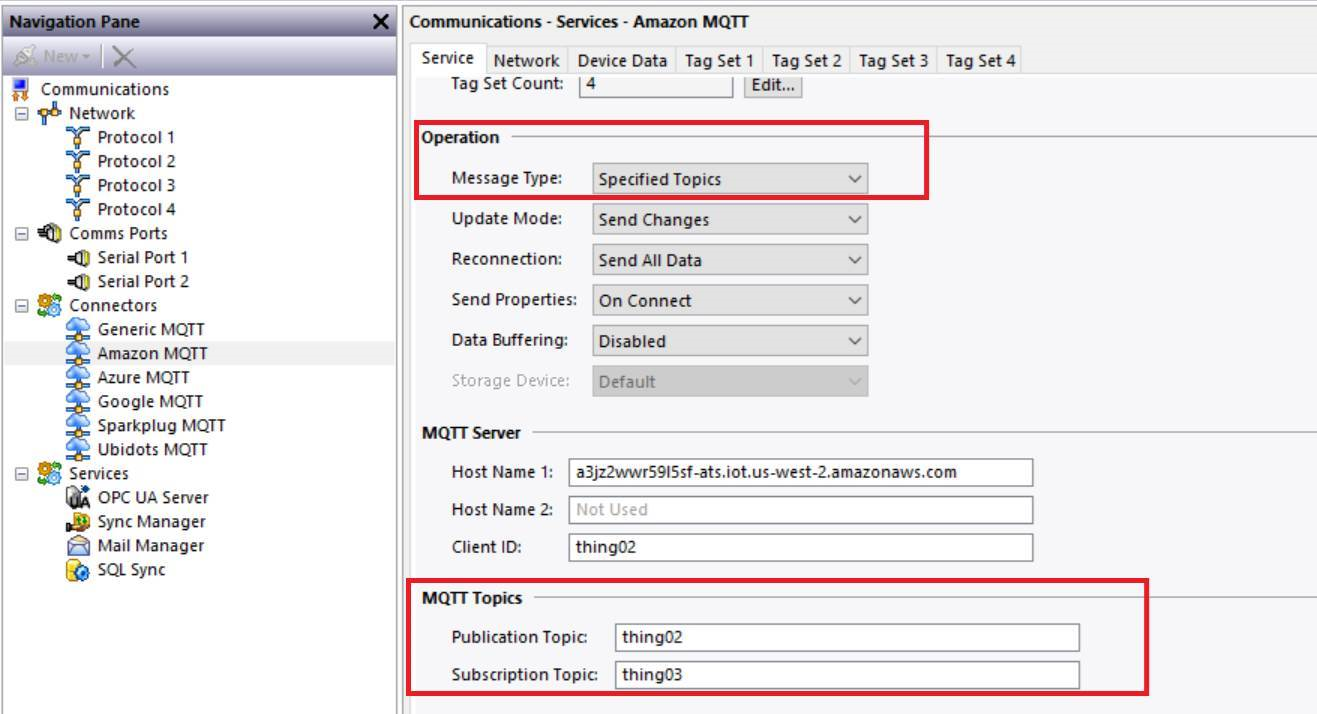

1. Go to Communications -> Connectors -> Amazon MQTT -> Service tab and select Message type to be Specified Topics. Provide a name for Publication and Subscription Topic.

Make sure the host name is correct.

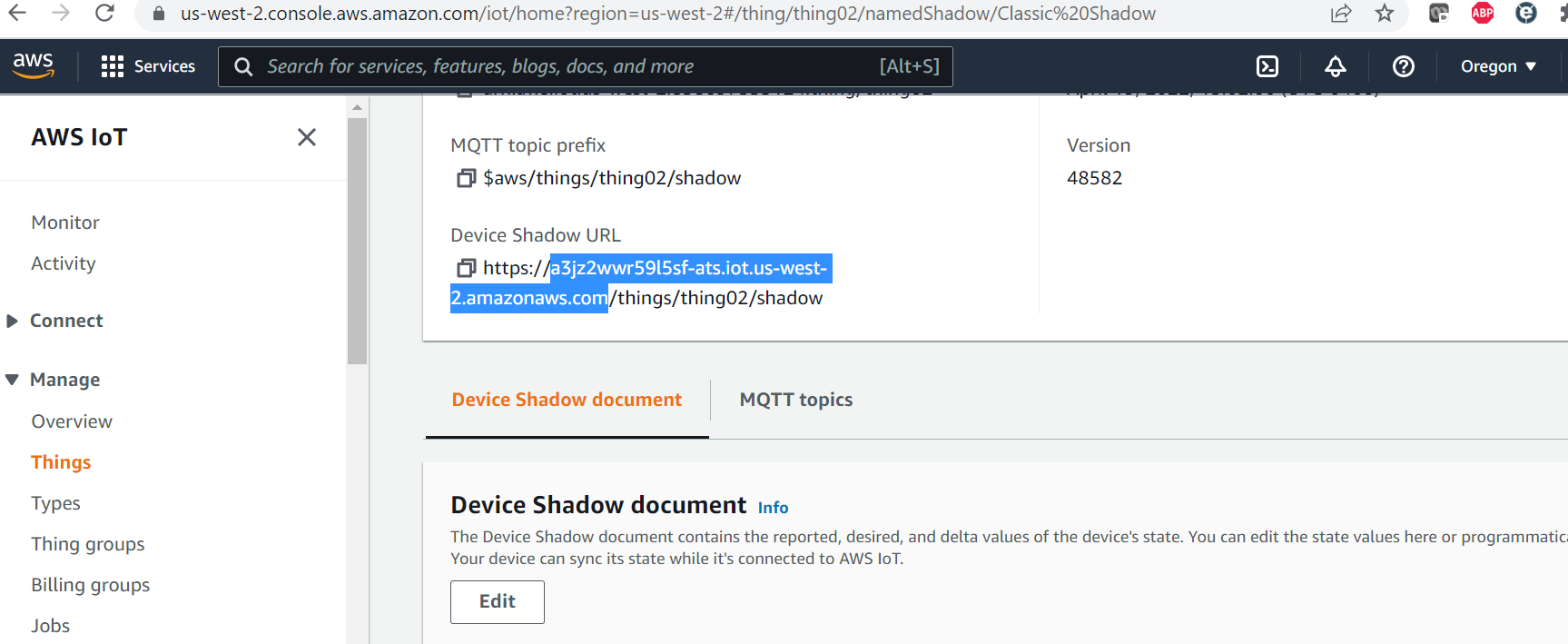

Below is where the host name comes from in AWS once you have created a thing

2. Make sure load the certificates correctly

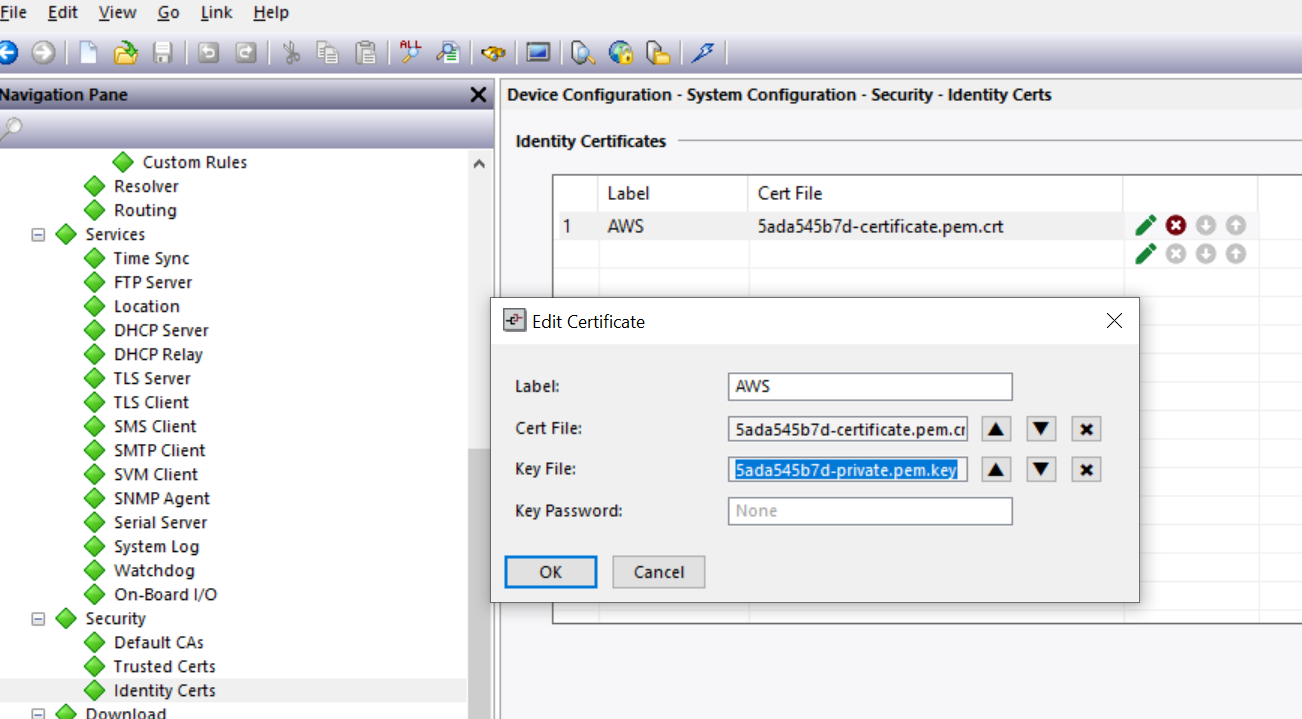

In Crimson 3.2, you need to go to hardware configuration ->Security -> Identity Certs as seen below.

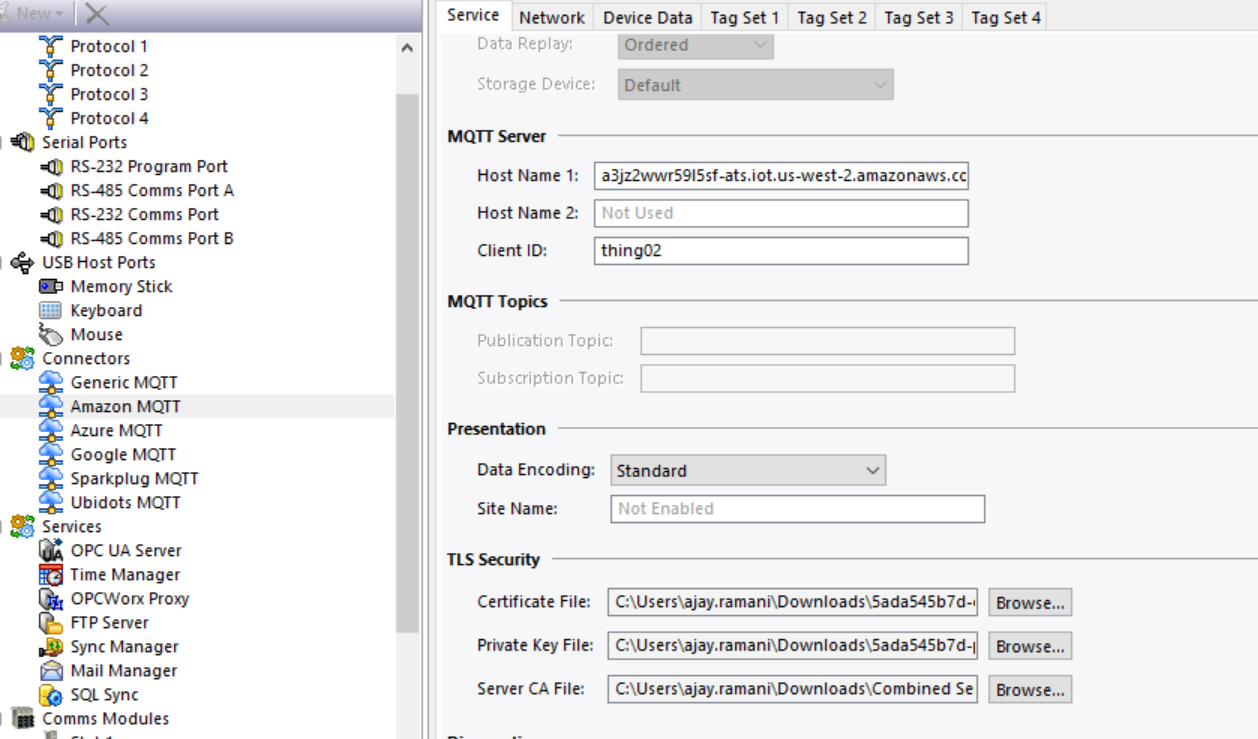

In Crimson 3.1, go to Communications -> Connectors -> Amazon MQTT -> Service tab -> TLS security to load the certificates.

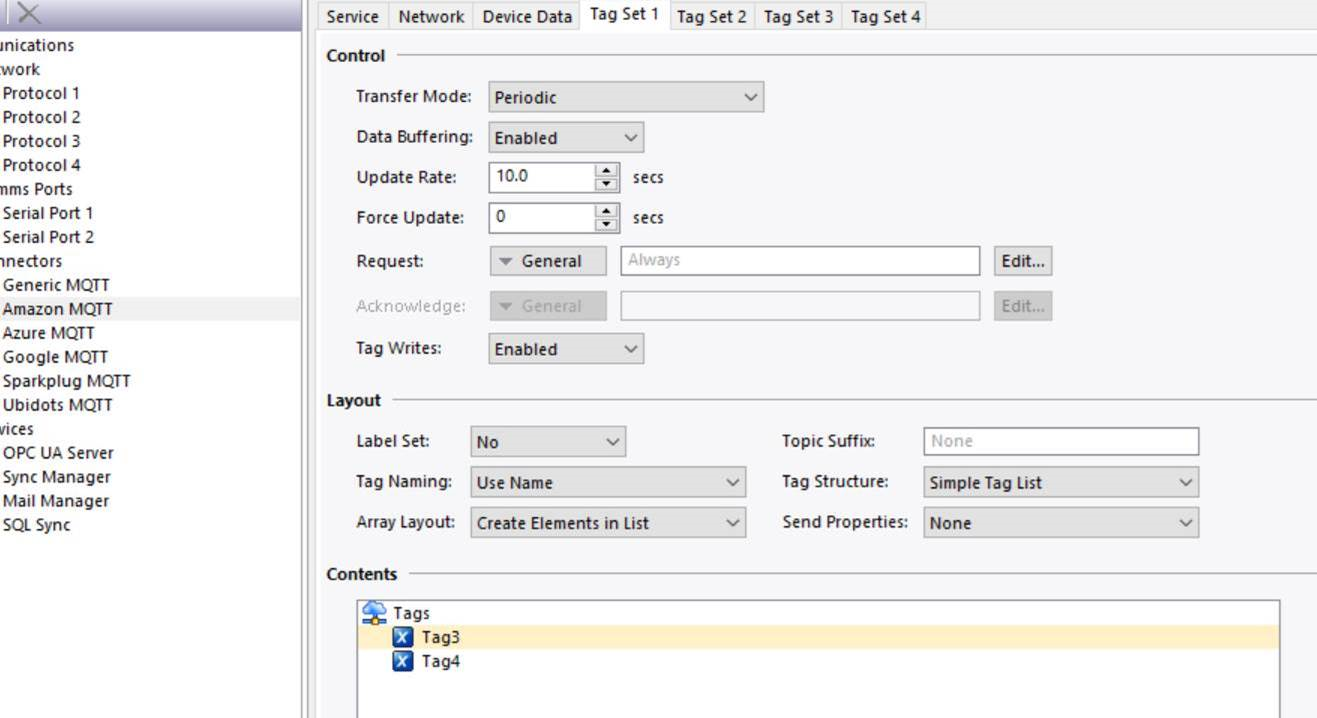

2.  Create two tags for sending data from Redlion device to Cloud (AWS). I have placed them in Tag set 1 and set the transfer mode to be Periodic.

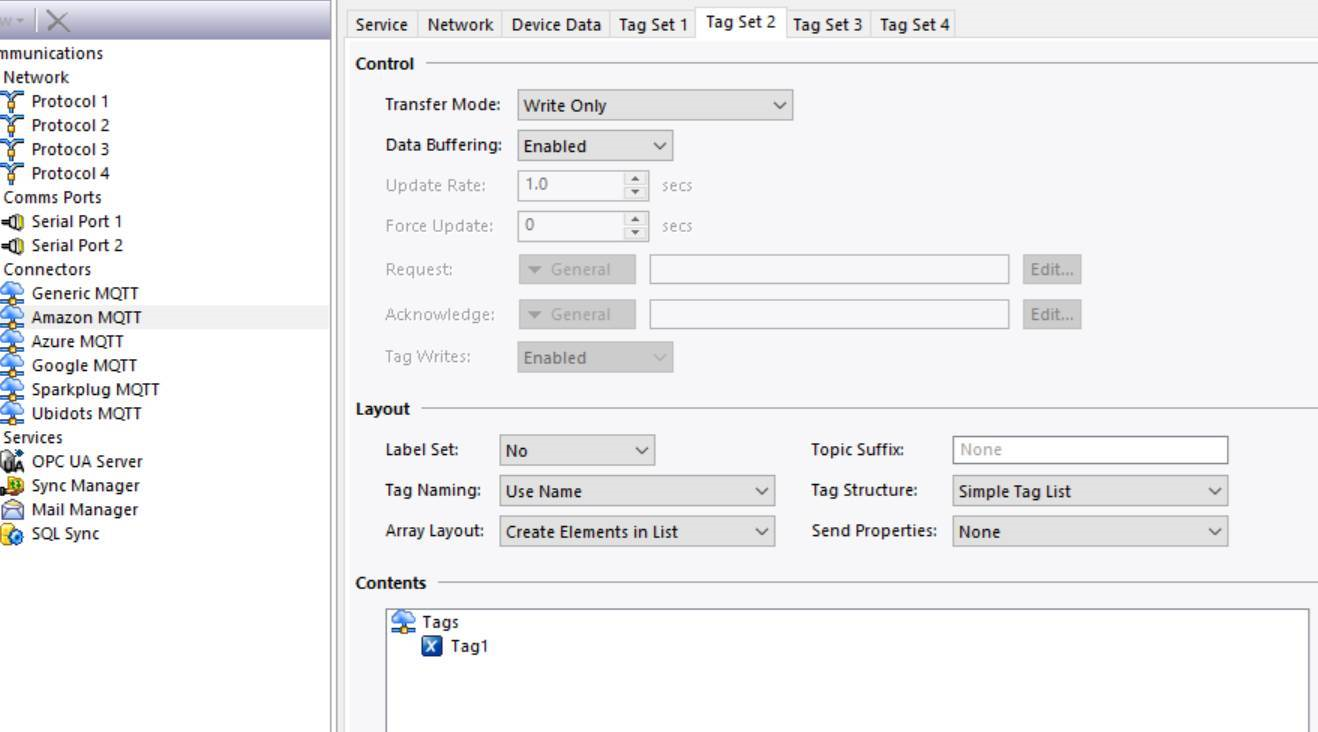

3. I have created a tag for writing from Cloud (AWS) to Redlion device. I have placed this tag in Tag set 2. Make sure to set the transfer mode to write only.

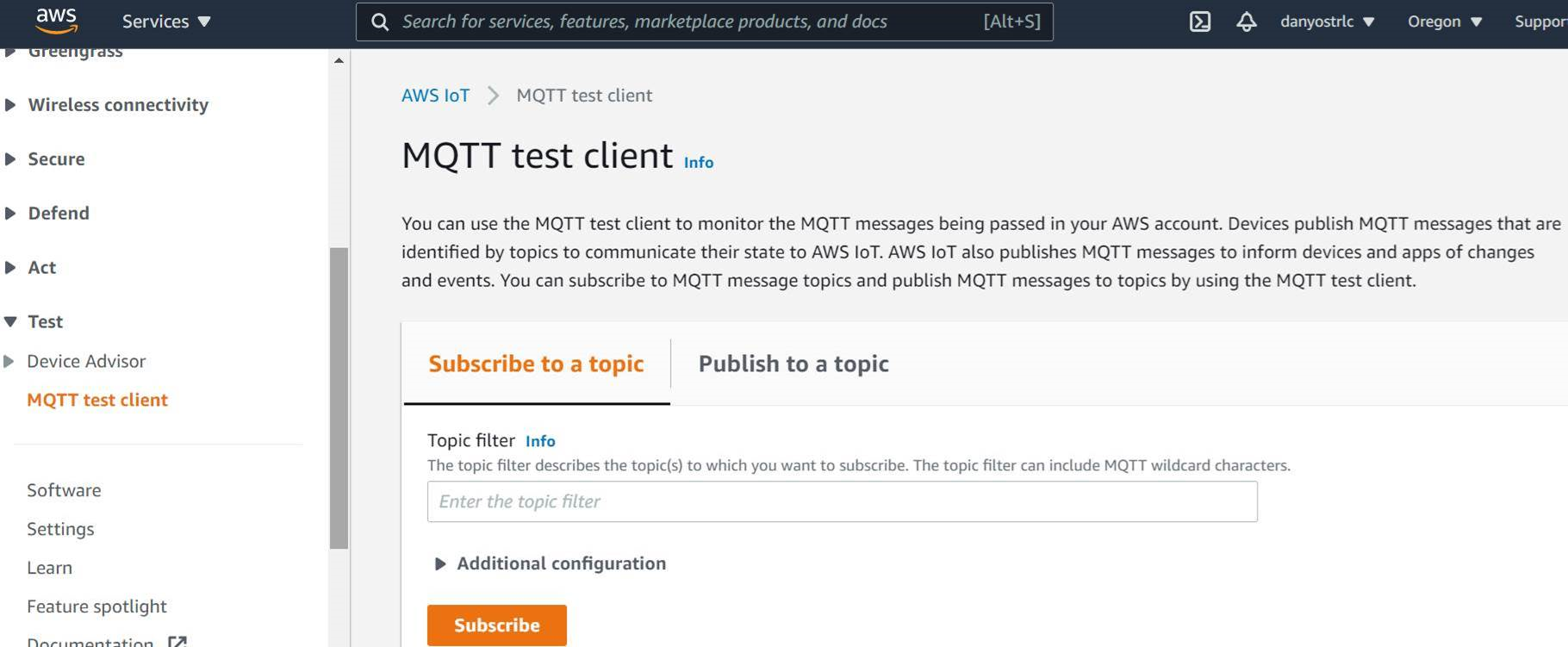

4. Launch MQTT Test Client in AWS by going to Test -> MQTT Test Client

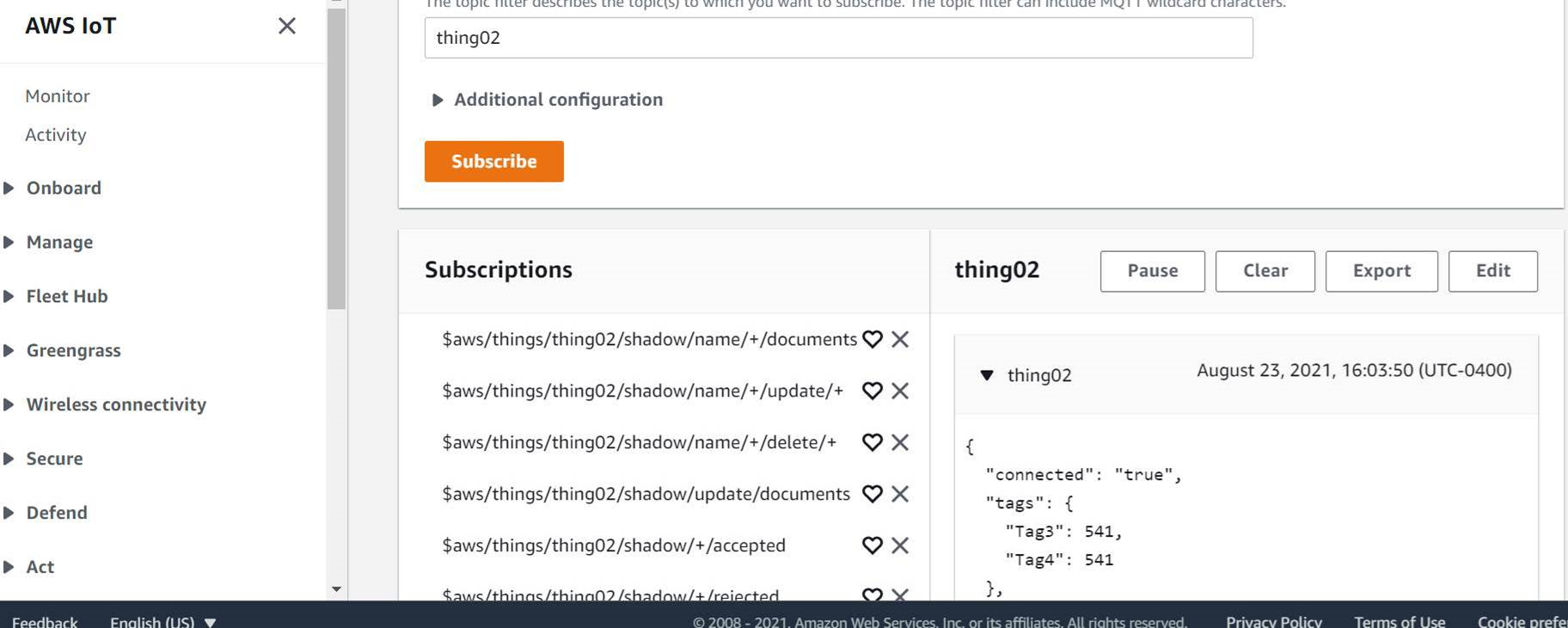

5. AWS IOT reading  Tag3 and Tag4 data from Red Lion device by subscribing to topic thing02

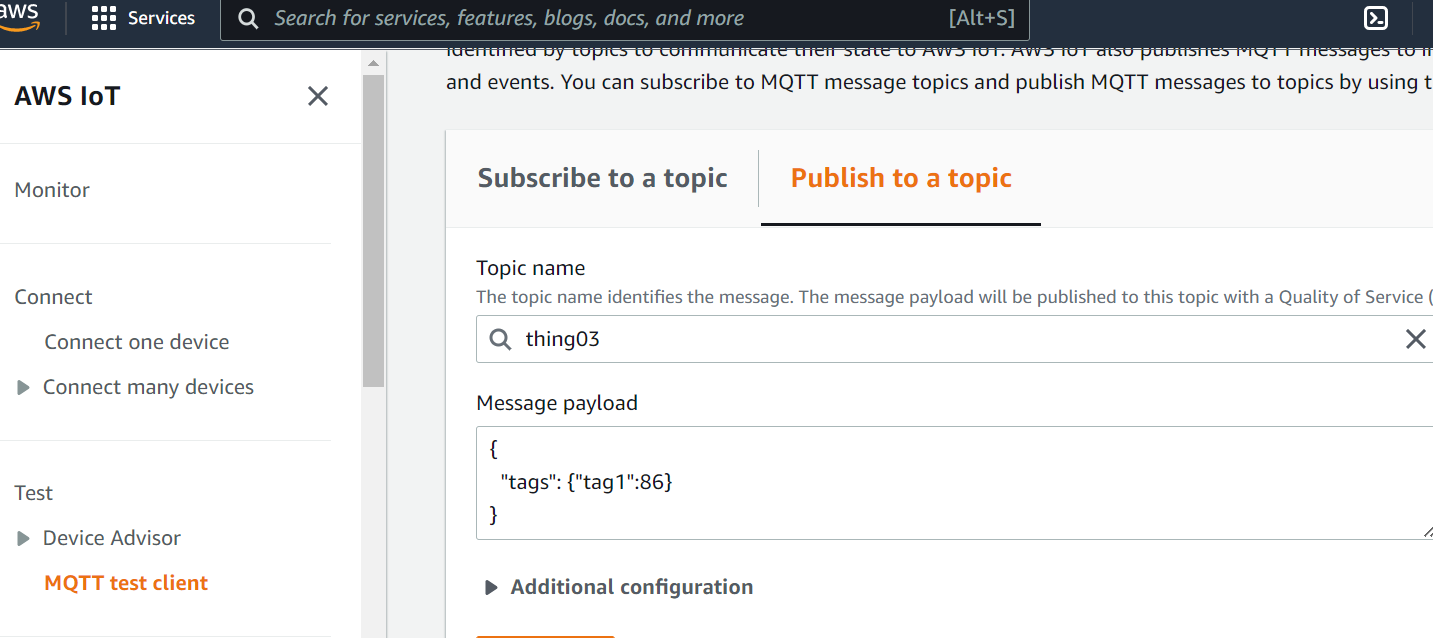

6. AWS IOT writing to Red Lion device by publishing to topic thing03

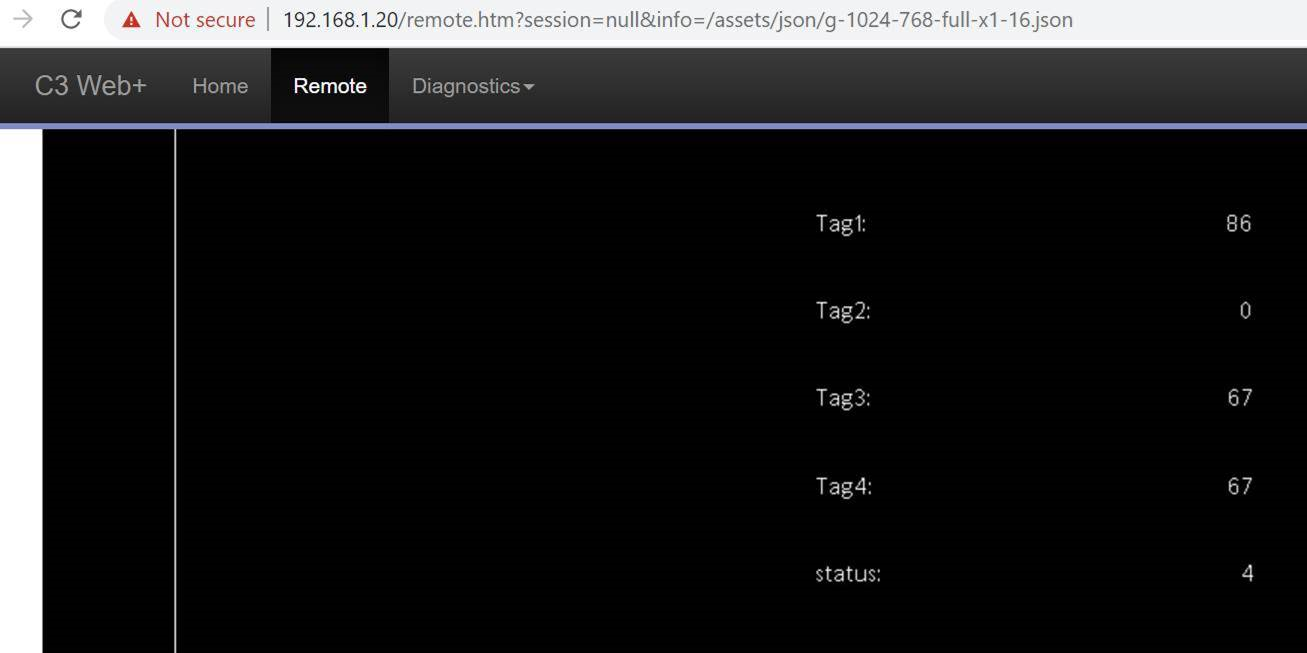

7. Webserver showing Tag 1 successfully getting the value of 86 published by AWS

Attached in this tech note is a sample database for Specified Topics.
